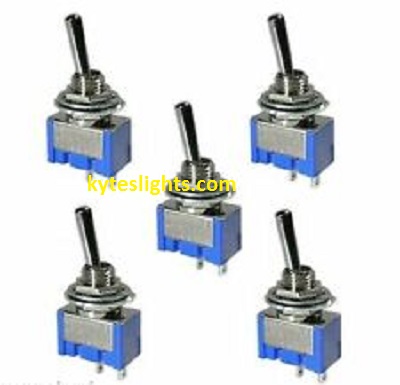

10 heavy duty toggle

perfect for making switch control panels for lighting and signals on/off (spst)

Size main body 12mm x 7mm, fixing shaft 10mm,switch lever 10mm

Specification. Contact Rating:3A with resistive load @220V or 28V DC or 0.4VA Electrical Life:50,000 make-and-break Cycles at full load Contact Resistance:100MΩ Max initial @2-4VDC,100MA for both coin silver and gold plated contacts. Insulation Resistance:1,000MΩ Min Dielectric Strength:1,000RMS @sea level Operating Temperature:-25oC to +125oC Material, Toggle hand -brass ,Chrome nickel plated Bushing-brass ,nickel plated Housing-Stainless steel

any questions please contact me I am always happy to help
